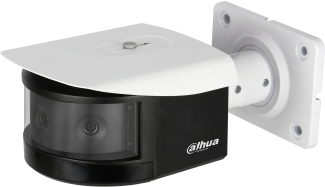

• KAMERA IP DAHUA IPC-PFW8601-A180-H-E3-AC24V

Brak towaru
6515.31
Wpisz swój e-mail
Wysyłka w ciągu 24h
Cena przesyłki 16
Odbiór osobisty 0
Paczkomaty InPost 16
Kurier 17
Kurier (Pobranie) 22
Dostępność Brak towaru
Waga 3.42 kg
Zostaw telefon

KAMERA IP DAHUA IPC-PFW8601-A180-H-E3-AC24V

Najważniejsz cechy

Najważniejsz cechy

  • Three 1/2.8" 2Megapixel progressive scan STARVIS. CMOS
  • H.265/H.264 triple-stream encoding
  • Max 25/30fps@4096x832
  • Support 180-degree panoramic view
  • Day/Night(ICR), 3DNR, AWB, AGC, BLC,WDR
  • Smart detection
  • Intelligent Function
  • Max. IR LEDs length 30m
  • Micro SD memory, IP67, IK10,PoE+

Przeznaczenie

Kamera do monitorowania dużych przestrzeni

Specyfikacja techniczna

Camera
Image Sensor Three 1/2.8" 2Megapixel progressive scan CMOS
Effective Pixels 4096(H)x832(V)
RAM/ROM 1024MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.007Lux/F1.8( Color,1/3s,30IRE) 0.05Lux/F1.8( Color,1/30s,30IRE) 0Lux/F1.8(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 8
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6mm
Max. Aperture F1.8
Angle of View H: 180˚, V:44˚
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
DORI Distance Detect Observe Recognize Identify
52m(171ft) 21m(69ft) 10m(33ft) 5m(16ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Heat Map, E-PTZ
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 4096×832/3840×780/2560×520/ 1280x260/1024X208
Frame Rate Main Stream: 4096x832(1~25/30fps)
Sub Stream: 1024X208 (1 ~ 25/30fps)
Third Stream: 1280x260 (1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265: 4Kbps~ 10Mbps H.264: 8Kbps~ 16Mbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip N/A
Mirror N/A
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/G.711Mu/AAC/ G.726
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS Local PC for instant recording Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface 1 Port(For adjustment only)
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 2 channel In: 5mA 5VDC 1 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply AC24V, PoE+ (802.3at)(Class 4)
Power Consumption <23W</td>
Environmental
Operating Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Strorage Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions 298.3mm×172.5mm×120.5mm (11.74"×6.79"×4.74")
Net Weight 2.60kg(5.73lb)
Gross Weight 3.41 kg(7.52lb)
